Follow this pattern to get the functionality to generate QR codes in Turnkey:

(Please note: this does not work in a serverside job.)

Add a class ZXing (this is the open-source QR-code library we use, credit goes to everyone involved in that).

Add a static method with this signature QRImage(width:Integer; height:Integer; value:String):Image – and then you have access.

In the application (a returns and reclamation system) where this was first used, we added a derived attribute like this:

QRCode: Blob , DerivationOcl = ZXing.QRImage(300,300,’https://reklamation.azurewebsites.net/MDriven/DisplayWithVariables?view=TestQRCodeFromVariable&id=$null$&vLopnummer=’+self.Lopnummer.asstring)

The Method must be marked with Tagged Value : Eco.ExternalLateBound = AnyValue

Let me explain the OCL a bit:

ZXing.QRImage(300,300, theUrl)  – this calls the static method QRImage on class ZXing, stating that the QRCode should be 300×300 pixels. For this to be permissible in OCL, we must have the QRImage method marked as IsQuery.

From 2020-02-09, You Can Also Create EAN13 Barcodes.

To make an EAN13 barcode, you need a string of 12-numbers between 0-9, and the last 13th checksum digit will be added - or a 13-numbers string where the last digit is the correct checksum.

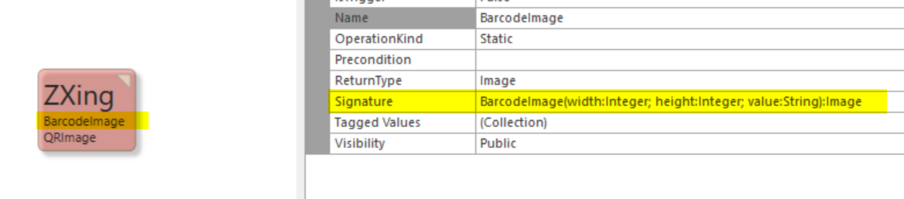

In the ZXing class, add a method just like the QRImage above but call it BarcodeImage.

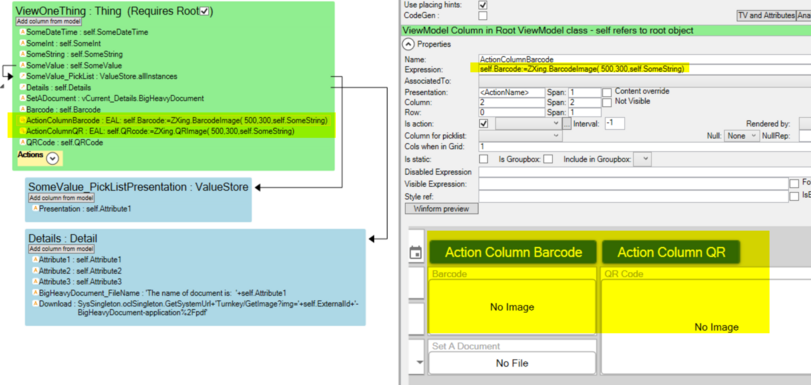

Using it in a ViewModel:

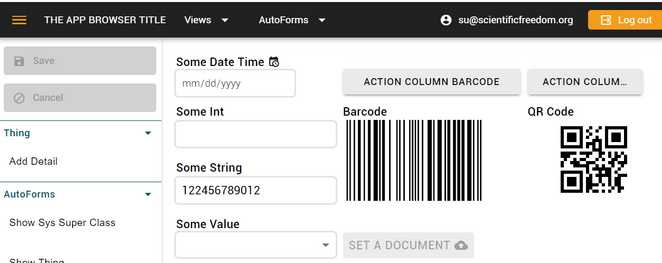

will give you this result:
